Fuzzy Logic Temperature Controller

SDM 9000

SDM 4900

SDM 7000

SDM 9400

SDM 4000

Product SDM 9000 SDM 4900 SDM 7000 SDM 9400 SDM 4000
Dimension 96 x 96 x 110 (mm) 48 x 96 x 110 (mm) 72 x 72 x 110 (mm) 96 x 48 x 110(mm) 48 x 48 x 90(mm)
Input Universal Input (K, J, E, N, C, T, R, S, B. Pt100 . JPT100 . 1~5V, 0~5V)
Output Universal Output (Relay : 250V 3A(R Load). 4~20mA (Max600 ) SSR Non-Universal
Control Mode PID, PI, PD, P, ON-OFF (each direct/reverse mode), Heating-Cooling.
Accuracy T.C : ± 0.3% of F.S + 1digit or 3 , RTD, Volt : ± 0.2% of F.S + 1digit
Alarm 2-Points Relay 250V 3A (R Load)
Power AC 100~240V 50 / 60Hz. 0.5Amax
Operating Condition Temperature : 0~50 C , Humidity : 35~85%RH
Others
  • Program control - 2 pattern 12 segment
  • Digital Input
  • RS 485, MODBUS Interface(SDM 9000, SDM 7000)
  • Auto-Manual Control
  • Scan time : 0.16sec
  • Input Filter
  • TX Power Supply (17V 30mA)

Power Regulators

SPR-Pro

TPR-Pro

TPR-XPro

Product SPR-Pro TPR-Pro TPR-XPro
Dimension 86 x 130 x 76 (mm) 126 x 191 x 130 (mm) 100A:190 x 280 x 190 (mm)
20~240A:240 x 350 x 240 (mm)
Input Current : DC 4~20mA. Contact : Zero Voltage Contact
Output 0~95% min. of Input Volatge
Control Mode Phase angle
Accuracy All Resistance Load
Alarm 30A 50, 75A 100, 120, 150, 200, 240A
Power AC 100, 220, 380, 415, 440, 460A 50 / 60Hz
Operating Condition Temperature : 0 ~ 50 C Humidity : 35 ~ 85%RH
Others TRIAC SCR+SCR SCR+SCR

Power Regulators

TPR 3E-Plus

TPR 3E-Plus

TPR 3E-Plus

Product TPR 3E-Plus TPR 3E-Plus TPR 3E-Plus
Dimension 190W 280H 190D (mm) 240W 350H 240D (mm) 300W 350H 240D (mm)
Current Capacity 35, 50A 80, 100A 120, 150, 200. 240A
Control Input Current : DC 4~20mA. Contact : Zero Voltage Contact
Output Voltage 0~95% min. of Input Volatge
Control Mode Phase angle
Possible Load All Resistance Load
SCR Element SCR 3 and SCR 3 3-Phase Anti-Parallel Connection.
Power AC 100, 220, 380, 415, 440, 460V, 50 / 60Hz
SCR Element Cooling 35~100A : Natural Air 120~240A : Fan
Others
  • Operation by analog (4-20mA) or digital (RS 485) input signals
  • Indicating of analog (4-20mA) signal and output current (line R or T)
  • Automatic output-limit cognition of external volume or internal limit setting
  • Various alarm mode (over current, line failed, Un-load, over-temp. load unbalance)
  • Relay alarm output
  • Programmable Soft start
  • Anti-fluctuation by input filtering function
  • Easy alarm confirm by built-in buzzer
  • Output current limit function
  • Built-in watchdog timer
  • RS-485 interface (MODBUS® protocol) (Optional)
  • Remote control function by Remote Controller (Optional)
  • Compact Size

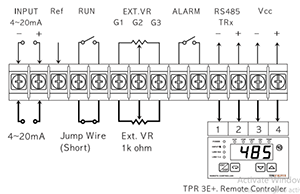

Remote Controller RC-1000 *All remote controller functions are almost same with main unit controller function except below
  • Reset key function from front panel
  • Fixed interface parameters: Address 1
*Speed; 9600 BPS, Delay Time; 1

Connect to TPR3E-Plus

Temp. & Humidity Transmitter

SRN 200

SRN 300

SRO

Product SRN 200 SRN 300 SRO
Dimension W70 X L114 X D30 (mm) W86 X L86 X D293 (mm) W80 X L105 X D31 (mm)
Power 15~30Vdc 15~30Vdc 15~30Vdc
Temp. Humi. Temp. Humi. Temp. Humi.
Accuracy at 25 ± 0.3C ± 3%RH ± 0.3C ± 3%RH ± 0.3C ± 0.3%RH
Output dPt100 or
4~20mA dc		 4~20mA dc dPt100 or
4~20mA dc		 4~20mA dc 4~20mA dc 4~20mA dc
Element dPt100 IC Type dPt100 IC Type NTC IC Type
Operating Conditio -10~70 (Non icing) 0~50 (Non icing)
Sensing Range -5~60 0~100% -10~70 0~100% 0~50 0~100%

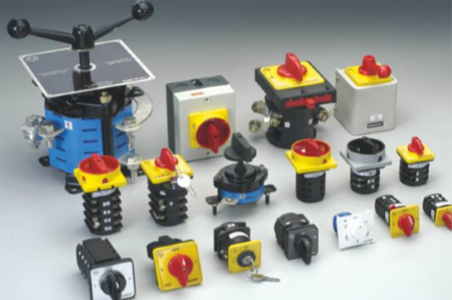

Rotary Switches (AC/DC)
  • AC Switch Range: 6-400 Amps
  • Touch Proof / Rear Termination / Side Termination / ScrewlessTerminals
  • Mountings : Standard Front Panel, Rear,22.5 mm dia., Din rail, Mix & Match, Center Key lock, Pad Lock & Door Interlock switches
  • Breaker Control Switches : 25 / 32 Amps
  • Spring return to Neutral, Memory Feature & Sequential Lock
  • DC Switch Range : 16-500 Amps upto 250 Volts DC

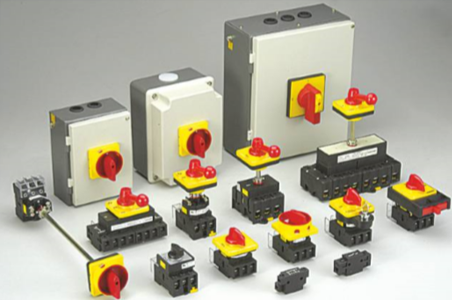

Load Break Switches
  • Load Break (Isolator) range from 16-125 Amps
  • Upto 8 pole
  • Multiple mounting options, ABS / Aluminium / Sheet Steel enclosures / IP65 / NEMA Rated
  • Add on pole–Power / Neutral and Auxiliary pole
  • Changeover switches from 25-125 Amps upto 4 poles

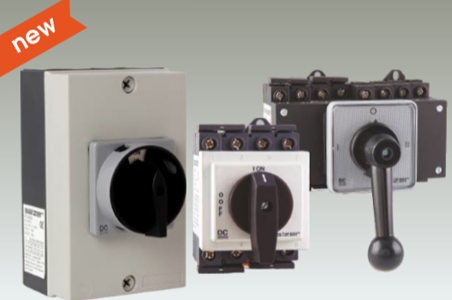

Photo Voltaic Isolators
  • DC Isolators
  • Range 20A to 63A upto 1000 VDC
  • Mounting Options : Standard Front Mounting, DB Mounting, Door Interlock & Enclosure Mountings
  • AC/DC Changeover
  • Range 20A to 63A upto 1000 VDC
  • Mounting Options : Standard Front Mounting, Door Interlock & Enclosure Mountings available
Cable Ducts & Special Profiles
  • Offered in Various Locking Styles - Type A, Type B & Type E
  • Flame retardant Ul94 VO, RoHS & FRLS materials
  • Wide range from (15X15 mm) upto (150X150 mm)
  • Various Colours & Slotting styles–Standard, Thin, Oblong, Circular & Intermediate slotting
  • Special profiles - Power / PCB / Flexible / Corner Ducts
  • Offered in Halogen Free low smoke with temperature upto 90 C

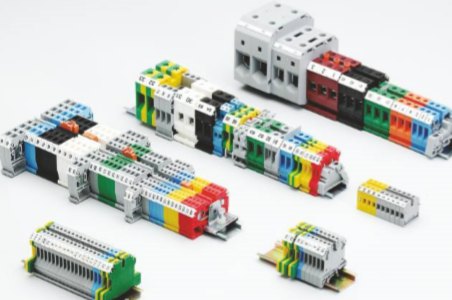

Terminal Connectors
  • Range from 2.5 – 95 Sq.mm Universal mounting
  • Standard terminal connectors, Miniature, Double Level, Triple Level connectors & Screwless connectors
  • UL94 V0 grade material
  • Fuse terminals, Earth Terminals, Stud Test & Disconnecting Terminals. Connectors with Electronic components & Distribution Terminal Blocks
  • Accessories : End plate / Clamp, Marking ferrules, Group markers, shorting links & Din rails

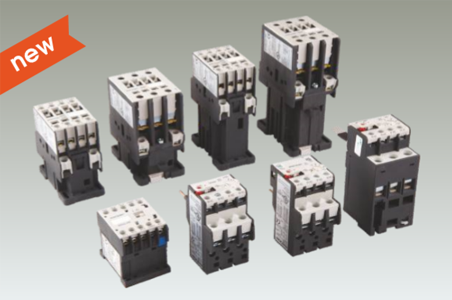

Contactors & Overload Relays
  • Standard Contactors 4 Frames 9A to 105 Amps Reversing, Non Reversing
  • Accessories : Front & Side Mounted Auxiliary Contact, Wiring Modules Interlocks, Surge Suppressors
  • Mini Contactor : 7A to 16 Amps, Control relays - 16 Amps
  • Accessories : Auxiliary Contact, PCB Link Module, Electronic Timer, Mechanical / Electrical Interlocks, Wiring Module, Surge Suppressor etc.
  • Bimetallic Over Load Relay 5 Frames from 0.28-112 Amps

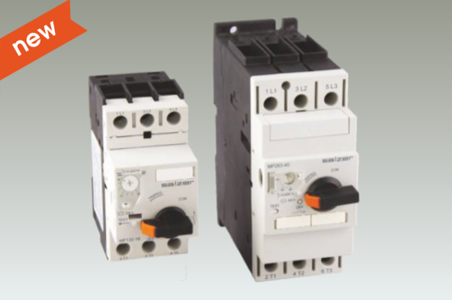

Motor Protection Circuit Breaker (MPCB)
  • Motor Disconnect function, Branch circuit protection, Motor control function & Overload protection
  • Available in 2 frame sizes 32 & 63 Amps
  • Ratings confirm to Type E & Type F Combination motor controller as per UL508–NKJH clause
  • Ratings confirm to Manual motor controller as per UL508–NLRV clause
  • Suitable for Group motor application and Tap conductor protection and 8 relay ranges available from 11 to 63 Amps

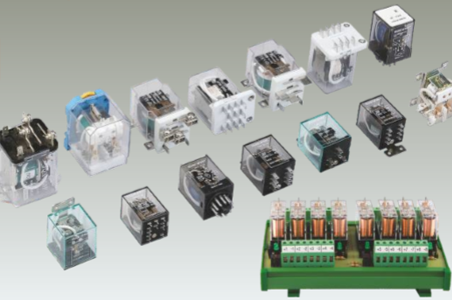

Relays & Relay Modules
  • AC & DC relays from 3 to 80 Ampsfrom 1 to 4 pole
  • DC power relays upto125 Amps
  • Miniature, General purpose, Power & Automotive Relays
  • Termination via Solder, PCB mounted, Plug-in and Screw type terminals
  • Silver contacts for enhanced electrical life, ERDA Tested & complies with JSS standards
  • Relay Modules : 1 & 2 Changeovers with 2,4,6 & 8 channels

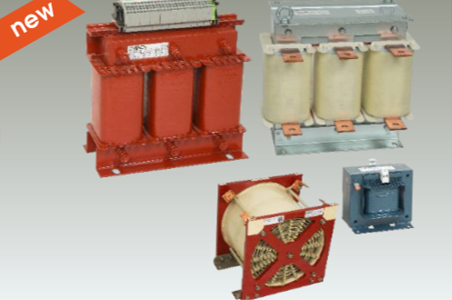

Transformers & Chokes / Inductors / Reactors
  • Dry type Magnetics - VPI, AN - AF - Water Cooling etc.
  • Transformers Range : 1KVA to 1MVA, 1Phase and 3Phase
  • Chokes / Inductors / Reactors Range : 1KVAr to 1MVAr, 1Phase and 3Phase
  • Application : Voltage Step-up & Step-Down, Isolation, Power factor Correction,
  • Harmonics Filtering, Current/Power smoothening etc.
  • Sectors : Renewable Energy, Drives/Industrial Sectors and Railway/Traction/Mobility etc.

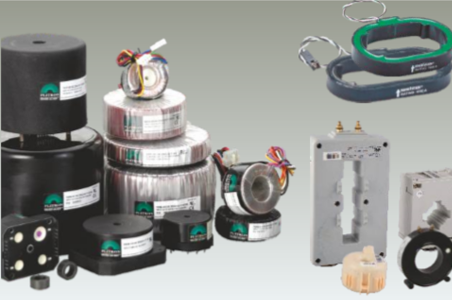

Toroidal Transformers, CT’s & Rogowski Coils
  • Transformers : Single Phase 15 VA-30 KVA, Three phase 1 KVA - 120 KVA
  • Compact, Dimensionally flexible, Energy efficient
  • Easy mounting, Low stray magnetic fields, Reduced Transformer hum
  • CT’s : Primary Current range from 10A to 4KA, Secondary Current from 0.1A to 5A & Accuracy from 0.2 to 3%
  • Rogowski Coils : Range from 400 A to 6300 A with output of 222 to 444 mV

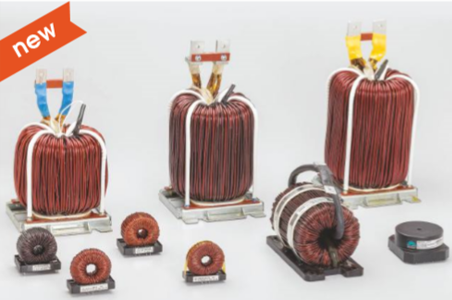

Toroidal Inductors & Chokes
  • Toroidal Choke : 40 KVA to 250 KVA, Upto 300 Amps
  • Core types : Magnetic core of iron powder, ferrite or other material
  • Toroidal coils are used in a broad range of applications, such as high-frequency coils and transformers
  • Toroidal inductors with higher Q factors, higher Inductance & No noise
  • Power Chokes & Inductors : Range : 0.1 to 100 mH, Upto 20 Amps

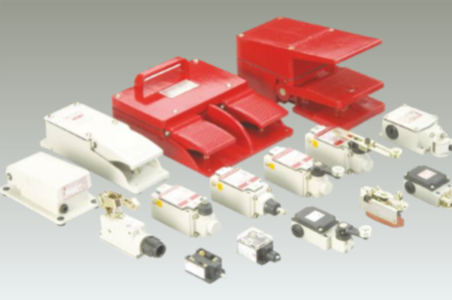

Limit & Foot Switches
  • Limit switches : Available in Normal / Snap action
  • Precision limit switches : 1NO + 1NC / 2NO + 2NC
  • Operating force : From Light to Heavy duty applications
  • Versatile mounting heads
  • Rugged aluminum die cast housing
  • Foot switches : With Guard / Shielded version Twin also available
  • Zinc die casting housing available on request

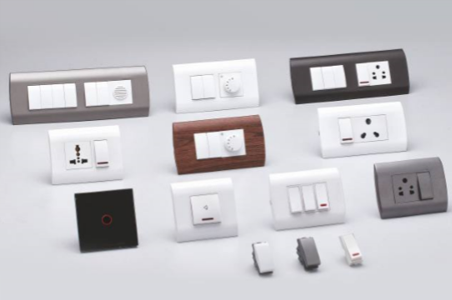

Modular Switches
  • S90 Series - Contemporary & Aesthetically Sleek Modular Switches – 10,20 & 32 Amps AC suitable for Standard Plates, Elite Plates, Glass Plates & Coloured Plates
  • Sierra Series - Economy range Switches & Sockets
  • Silver Nickel contacts for enhanced Electrical life
  • Safety Features : Anti Spark shield & Finger Protected Terminals with Captive Screws & Snap fitment Installation

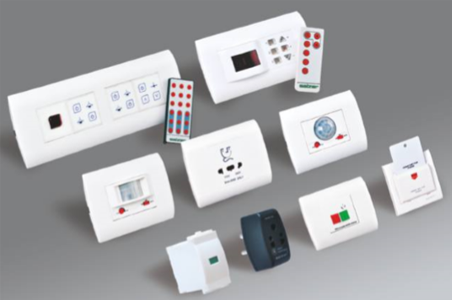

Modular - Speciality
  • Aesthetically sleek and sophisticated speciality products viz.
  • Remote Switches : 4 Channel Remote switches, Touch / Remote switches
  • Movement Sensors, Motor Starters, Key Tag Switches
  • Dual Volatge Shaver sockets, Timers & other Hotel / Hospitality range of products
  • Accessories : Angle Holders & Batten Holders

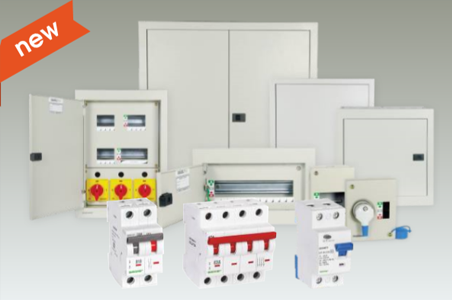

MCB’s & Distribution Boards
  • MCB’s Offered in various current ratings from 0.5 to 63 Amps
  • With 10KA Short Circuit rating in B, C & D Curve
  • In Single pole, Single pole with Neutral, Double & Triple pole, Triple pole with Neutral & Four pole
  • Isolators offered from 32A to 63Amps in Double pole, Triple pole & Four pole
  • RCCB’s offered in 30/100/300mA sensitivity from 25A to 63Amps in Double pole & Four pole
  • Distribution Boards : Enclosures, Plug & Sockets, Single Phase DB, Three Phase DB, Vertical DB, Phase Selector DB, 7 & 8 Segment DB’s etc.

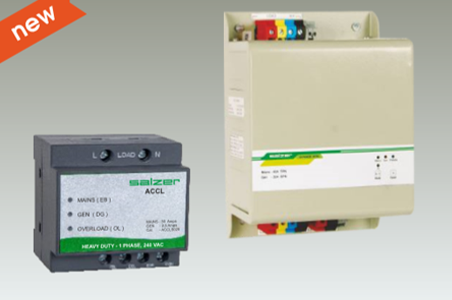

Automatic Changeover with Current Limiter
  • Single Phase ACCL’s Offered with DG Trip from 0.5 to 30 Amps / Mains 30 Amps
  • Patented Contactor based design , Overload indication through LED/ Beep & Convenient overload Trip cycles without shutdown
  • Three Phase ACCL’s Offered with DG Trip from 6 to 63 Amps/Mains 63 Amps in TPN-SPN & TPN-TPN configurations
  • Heavy Duty Contactor design with Electrical & Mechanical Interlock feature with S-Mode & T-Mode

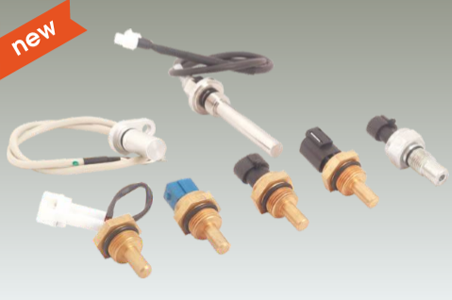

Sensors
  • Speed Sensors : Active/Passive Sensors with speed range upto 30,000 rpm in Square/Sine wave output
  • Position Sensors : Active/Passive Sensors with Rotation angle 0-90/0-180 & 0-360 with Analogue/Resistive output signal
  • Temperature Sensors : NTC / PTC types with Resistive output signal
  • Pressure Sensors : Absolute / Relative pressure from 0 to 1000 bar with Ratiometric Voltage/current output signal, with different ingress protection of IP65/IP67/IP69K
  • Custom Built Sensors can also be developed

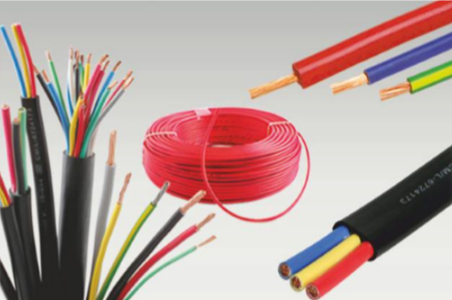

Wires & Cables
  • Range from 0.5 sq mm to 300 sq mm
  • Building Wires, Flexible wires, Multi Core Cables, Flat cables, Traveling cables, HRFR, FRLS, ZHFR wires, UL rated Wires
  • Shielded & Braided Wires
  • Bunched Conductors, tinned copper wires & customised cables
  • Solar Cables conforming to VDE
Wire Harness & Power Cords
  • Wire Harness for Automobile Industries, Industrial Electrical & Electronic Equipments, Consumer Electronics, Medical Equipments etc.
  • Photo Voltaic MV application upto 3MW
  • Copper Braid Compacting facility
  • Power Cords as per Indian, European & American Standards

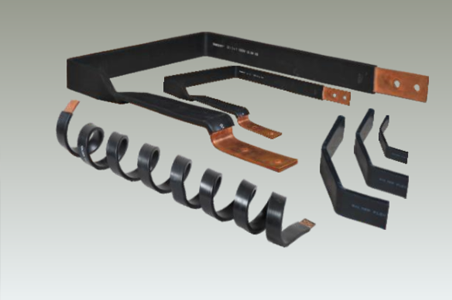

Flexible Busbars (Flexibus)
  • Manufactured from 99.997% pure ETP gradeannealed bare / tinned copper strips
  • Formulated special grade of Insulation compound to give more flexibility and to meet UL94 VO & RoHS Compliant
  • Offered with Cutting, Bending, Twisting & with Hole used in Panel Boards,UPS / Stabilizers and Windmills

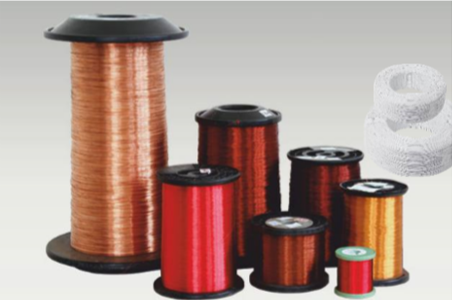

Enameled Copper Wire & Polywrap Wires
  • Manufactured from 99.97% pure ETP grade copper & insulated with high temperature engineered enamel
  • Wire ranges from 0.1 mm to 3.0 mm n ominal diameter (11 to 42 swg & 9 to 38 awg)
  • Insulation range available in grade 1, 2 & 3 as per IEC in single, Oh eavy & triple as per NEMA Available in 130(B), 155(F), 180(H) & 200 classes
  • Polywrap Wires : range from 0.4mm to 2.1mm upto 105 C as per IS Standards
